HTTP scaler

The kedify-http trigger scales a ScaledObject from request rate or concurrency. Kedify routes traffic through its proxy, collects metrics and holds requests during activation from zero. It does not support ScaledJob.

Configure HTTP scaling

Install the HTTP components, deploy your application and Service, and select a routing integration below. For an existing Ingress serving api.example.com through api:8080, save this as scaledobject.yaml in the application’s namespace:

apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
  name: api
spec:
  scaleTargetRef:
    name: api
  minReplicaCount: 1
  maxReplicaCount: 10
  triggers:
    - type: kedify-http
      metadata:
        hosts: api.example.com
        service: api
        port: "8080"
        trafficAutowire: ingress
        scalingMetric: requestRate
        targetValue: "10"

Kedify manages the generated HTTPScaledObject and routing changes. Keep one ScaledObject responsible for the workload’s replicas. For a complete application and ingress manifest, follow the Ingress recipe.

kubectl apply -n <namespace> -f scaledobject.yaml
kubectl get -n <namespace> scaledobject api
kubectl get -n <namespace> deployment api

Generate traffic through the configured hostname. Verify fresh HTTP metrics, desired versus ready replicas, and successful responses. Set minReplicaCount: 0 only after testing cold starts against client timeouts. Restore the previous ScaledObject through its configuration owner to revert a tuning change.

Choose an HTTP integration

Existing traffic path	Canonical setup
Direct in-cluster calls	In-cluster HTTP
Kubernetes Ingress	Ingress applications
InferencePool behind Ingress	Inference routing tutorial
OpenShift Route	OpenShift integration
Gateway API HTTPRoute	Gateway API
Istio VirtualService	Istio
Gloo Gateway	Gloo
TLS termination	TLS Ingress
Argo Rollouts canary	Canary routing
Existing Envoy proxy and metric sink	Existing Envoy scaling; no scale-to-zero activation
Ingress NGINX metrics through OTel	NGINX metric integration

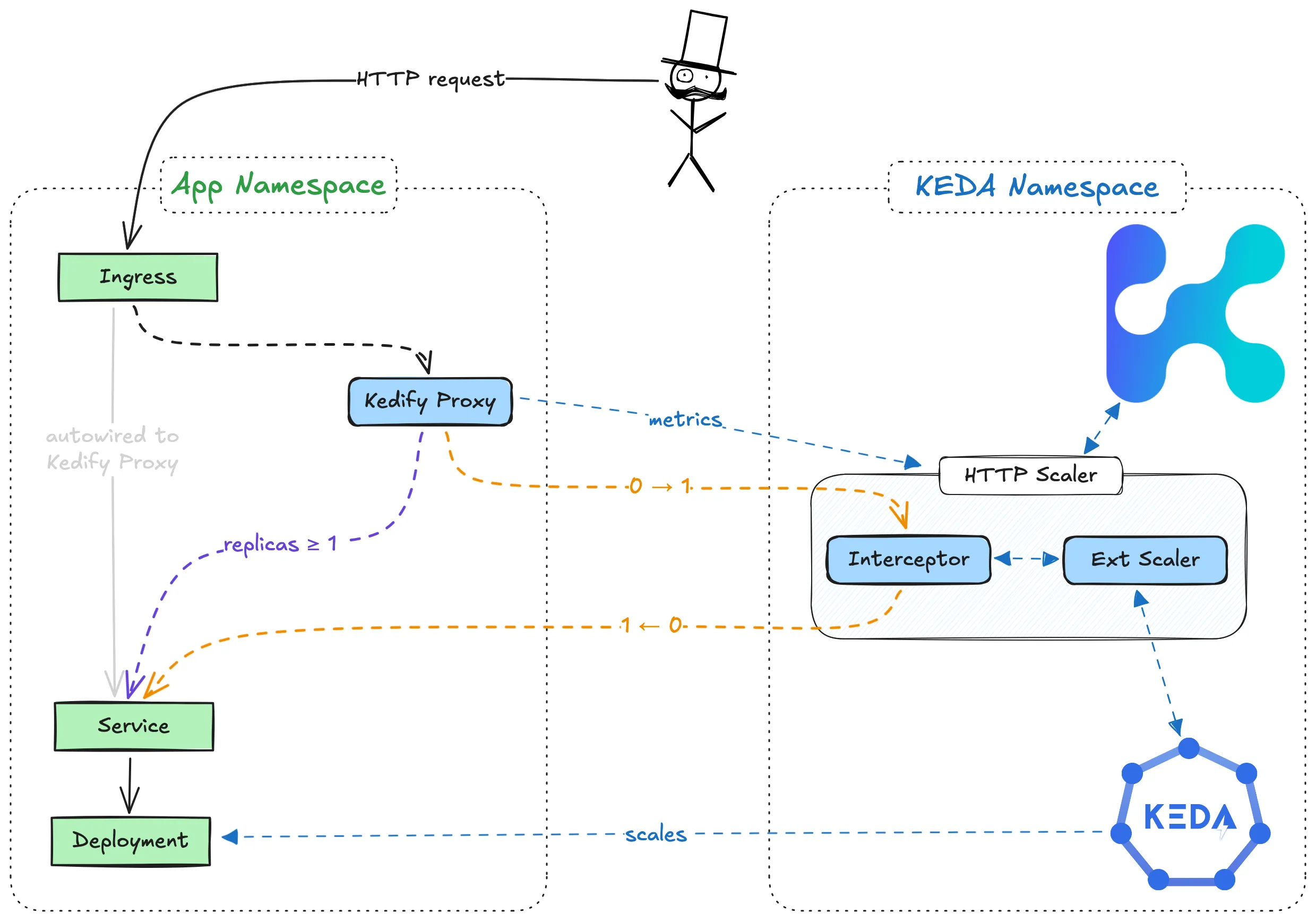

Architecture

Scroll to explore

Diagram description

Ingress traffic is autowired through Kedify Proxy. Ready backends receive requests directly through the Service. At zero replicas, the interceptor holds requests and forwards them when a backend is ready. Proxy stats and interceptor metrics feed the external scaler through the gRPC bridge. KEDA reads the metric; KEDA and HPA or KPA update the target Deployment's replicas.

Traffic Autowiring:

Kedify automatically re-wires ingress resources for the following implementations:

• Ingress
• Gateway API
• Istio
• Gloo Gateway
• OpenShift Routes
• Service

In a typical Kubernetes setup, the networking configuration is structured as follows:

Ingress -> Service -> Deployment

To enable automatic scaling based on incoming HTTP traffic, Kedify introduces additional components:

1. kedify-proxy: An Envoy-based proxy that routes traffic and collects metrics for scaling.
2. HTTP Add-on Interceptor: Ensures requests are routed and cached when the app is scaled to zero.

With Kedify, the traffic flow includes these additional components:

Ingress -> kedify-proxy -> Service -> Deployment

For finer control over ingress resources autowiring, use trafficAutowire with a comma-separated list of resources to be autowired, including route for OpenShift Routes and gloo for Gloo Gateway.

triggers:
  - type: kedify-http
    metadata:
      trafficAutowire: "httproute,ingress,virtualservice,gloo,route"

Autowiring Fallback

In case of control plane issues with kedify-proxy or interceptor, Kedify rewires traffic back to the original flow:

Ingress -> Service -> Deployment

This fallback restores direct routing; application availability still requires ready backend capacity. By default, traffic is rewired if Kedify detects control plane issues for over 5 seconds. This duration can be configured using agent.autowire.healthcheckDebouncerPeriod on the Kedify Agent helm chart.

Argo CD and GitOps Considerations

When using traffic autowiring in Argo CD-managed environments, the kedify-agent modifies live routing resources (Ingress, HTTPRoute) by rewiring backends to kedify-proxy and adding annotations. This causes Argo CD to detect drift on these resources.

To prevent Argo CD from reporting these expected changes as out-of-sync, add ignoreDifferences to the Argo CD Application that manages your routing resources.

Ingress

apiVersion: argoproj.io/v1alpha1
kind: Application
spec:
  ignoreDifferences:
    - group: networking.k8s.io
      kind: Ingress
      jqPathExpressions:
        - .spec.rules[].http.paths[].backend.service.name
        - .spec.rules[].http.paths[].backend.service.port
        - .metadata.annotations["http.kedify.io/interceptor-configuration"]
        - .metadata.annotations["http.kedify.io/last-ingress-rewire"]
  syncPolicy:
    syncOptions:
      - RespectIgnoreDifferences=true

Gateway API (HTTPRoute)

For HTTPRoute resources, the kedify-agent rewrites the name, namespace, and port of every matching entry in spec.rules[].backendRefs[] to point at the kedify-proxy service, and records the original backends in the http.kedify.io/interceptor-configuration annotation:

apiVersion: argoproj.io/v1alpha1
kind: Application
spec:
  ignoreDifferences:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      jqPathExpressions:
        - .spec.rules[].backendRefs[].name
        - .spec.rules[].backendRefs[].namespace
        - .spec.rules[].backendRefs[].port
        - .metadata.annotations["http.kedify.io/interceptor-configuration"]
  syncPolicy:
    syncOptions:
      - RespectIgnoreDifferences=true

Note that backendRefs[].namespace is included even though Ingress backends have no namespace field: the agent sets it explicitly (to the application namespace by default, or to the KEDA namespace when kedify-proxy runs cluster-wide), so it shows up as drift even when your Git manifests omit it.

The RespectIgnoreDifferences=true sync option ensures these fields are also excluded during sync operations, not just drift detection. Without it, Argo CD would revert the autowired changes on each sync.

When Applications are generated by an ApplicationSet, place the same ignoreDifferences and syncPolicy blocks under spec.template.spec. Use jqPathExpressions rather than jsonPointers for the HTTPRoute entry: a JSON pointer such as /spec/rules/0/backendRefs/0/name matches only one array index, while the jq expressions above cover every rule and backend.

Note

Ingress autowiring has a configurable cooldown period (default 1 hour) for re-applying changes to Ingress resources. Without the ignoreDifferences configuration above, Argo CD syncs and kedify-agent rewires would conflict, potentially causing traffic disruptions. The cooldown period can be configured using agent.autowire.ingressCooldownPeriod on the Kedify Agent helm chart.

HTTPRoute autowiring has no such cooldown: a reverted route is rewired again on the next reconcile, so an Argo CD sync without the configuration above results in a tight revert/rewire loop.

Disabling Traffic Autowiring

To disable traffic autowiring, specify:

triggers:
  - type: kedify-http
    metadata:
      trafficAutowire: "false"

In this case, users must manually wire the networking traffic. Note that Autowiring Fallback does not apply here.

Service Autowiring

For applications that are used only within the cluster and exposed only as a Service but would like to benefit from HTTP traffic autoscaling along with fallback, there is also service level autowiring. Configuring service as the trafficAutowire option excludes setting any other trafficAutowire options because it effectively replaces all of them. Kedify Agent will wire the traffic by managing Kubernetes Endpoints belonging to the Services defined in service and fallbackService in the trigger metadata.

This type of traffic autowiring brings two more requirements on the application and autoscaling manifests:

1. ScaledObject must define fallbackService: because the Kedify Agent uses it for injecting Endpoints to the service defined in the trigger metadata and kedify-proxy for routing.
2. Application service must NOT have selector defined: the Kubernetes control plane manages Endpoints for Services with selectors, which would collide with autowire feature. The service defined in the trigger metadata must be without selector while the fallbackService should carry the original selector you’d define on the service if it wasn’t autowired.

Note

When disabling service autowiring, don’t forget to add back the selector to the service defined in the trigger metadata, otherwise the Endpoints for this Service will remain unmanaged.

There is a redundancy periodic sync for service autowiring to ensure the Endpoints are always up to date. The sync interval defaults to 500ms and is configurable through kedifyProxy.autowire.serviceSyncPeriod on the Kedify Agent helm chart and can be further fine tuned by providing http.kedify.io/service-resync-period annotation on the ScaledObject resource.

Kedify Proxy

Kedify Proxy uses Envoy to route requests and collect metrics. See proxy configuration and performance tuning.

Deployment Options for Kedify Proxy

There are two main deployment configurations for kedify-proxy: Namespace-Level and Cluster-Wide.

1. Namespace-Level Deployment (Default): By default, kedify-proxy is deployed in each namespace that contains at least one ScaledObject using the kedify-http trigger. This approach ensures that traffic routing and metric collection are confined within the namespace where the ScaledObject is defined, providing isolation and control.

2. Cluster-Wide Deployment (Optional): For environments where Istio’s VirtualService is used (currently the only supported configuration), kedify-proxy can be deployed cluster-wide. In this setup, kedify-proxy is deployed in the KEDA installation namespace and shared among all ScaledObjects across namespaces. This configuration allows centralized traffic routing and scaling across all namespaces in the cluster.

   • To enable cluster-wide deployment, set the Kedify Agent helm chart option agent.kedifyProxy.clusterWide to true on the Kedify Agent. This will configure the Kedify Agent to deploy a single instance of kedify-proxy for the entire cluster, located in the KEDA installation namespace. For more details, refer to the Kedify Agent documentation.

Note: The cluster-wide setup for kedify-proxy is only compatible with Istio’s VirtualService. Other types of ingress configurations are not supported in this setup.

Kedify Proxy Traffic Flow

Original traffic path:

Ingress -> Service -> Deployment

With Kedify, the traffic flow includes kedify-proxy as an intermediary to monitor and intercept traffic before it reaches the service:

Ingress -> kedify-proxy -> Service -> Deployment

The proxy forwards requests to ready backends; activation holds requests while capacity starts. Verify the request path and timeout behavior under load.

Metrics Collection from Kedify Proxy

The kedify-proxy (Envoy) collects traffic metrics and pushes them to the HTTP Add-on interceptor via gRPC. The interceptor then forwards these metrics to the scaler using a gRPC bridge (enabled by default). KEDA reads the resulting scaling metrics from the scaler.

For debugging, you can query the /queue endpoint which exposes the same metrics:

kubectl get --raw /api/v1/namespaces/keda/services/keda-add-ons-http-interceptor-admin:9090/proxy/queue

For a detailed explanation of the metrics architecture, see HTTP Scaler Metrics Architecture.

Kedify Proxy Helm Chart

The Kedify Proxy is configured through the Kedify Agent helm chart, for example:

agent:
  kedifyProxy:
    globalValues: # see kedify-proxy for all options
      autoscaling:
        enabled: true
    namespacedValues:
      dev: # for namespace 'dev' disable kedify-proxy autoscaling
        autoscaling:
          enabled: false
      prod: # for namespace 'prod' set higher min and max replica count for autoscaling
        autoscaling:
          minReplicaCount: 3
          maxReplicaCount: 10

For complete list of options see Kedify Proxy helm chart.

Configuration reference

Configure	Documentation
Trigger fields, headers, multiple triggers and load balancing	HTTP configuration reference
Health probes	Healthcheck configuration
Waiting and maintenance responses	Waiting/maintenance pages
Canary routing	Argo Rollouts
Request failures and scaling delay	Logs and error metrics · Tracing · Troubleshooting
